Five key points to help you accurately select molded case circuit breakers to ensure circuit safety

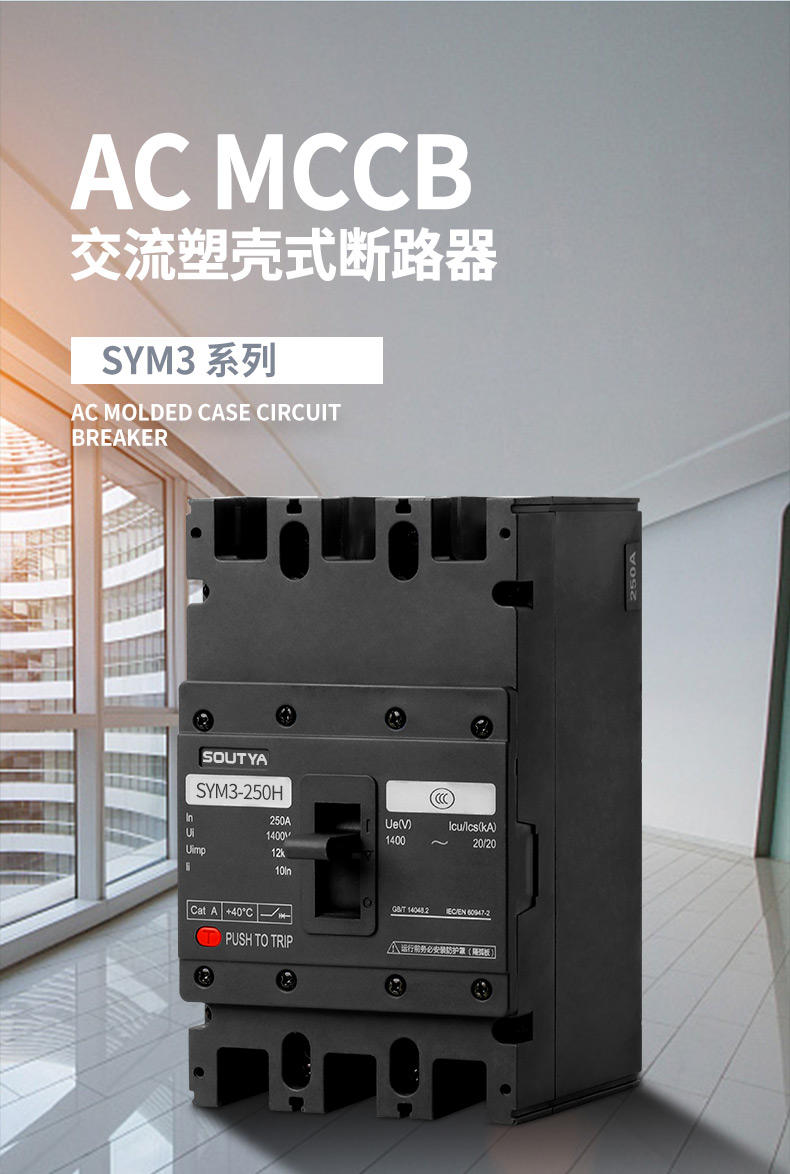

In modern low-voltage power distribution systems, molded case circuit breakers (MCCBs) are essential components for the safety of electrical lines and equipment. They not only effectively interrupt normal operating current but also rapidly isolate fault currents when a fault occurs, preventing the escalation of the incident. However, with so many options available on the market, how can you choose the right MCCB for your needs? This article will explain five key factors in selecting a MCCB to help you make an informed choice.

1. Understand the frame grade rated current

The frame rating refers to the rated current of the trip unit that the circuit breaker frame can accommodate. This parameter directly affects the circuit breaker's physical size and breaking capacity. Selecting the appropriate frame rating not only ensures long-term stable operation under specified conditions but also saves valuable installation space. Be sure to select a model that matches your actual operating conditions to avoid unnecessary risks.

2. Confirm the rated insulation voltage

The rated insulation voltage determines the clearance and creepage distance standards in circuit breaker design and is crucial to equipment safety. When selecting a circuit breaker, carefully verify that its rated insulation voltage meets the requirements of your application. This small but crucial step is a crucial line of defense against electrical accidents.

3. Consider the rated short-circuit breaking capacity

The rated short-circuit breaking capacity (Icu) refers to the short-circuit current a circuit breaker can interrupt under specific conditions. This parameter directly reflects the circuit breaker's ability to handle terminal conditions. Properly assessing the expected short-circuit current and selecting the appropriate product accordingly is a key step in ensuring power system safety.

4. Pay attention to the selection of accessory functions

By adding accessories such as auxiliary contacts, alarm contacts, and undervoltage releases, you can enhance the functionality and safety of your circuit breaker. For example, an undervoltage release automatically disconnects the circuit when the power supply voltage is too low, protecting sensitive equipment from damage. By flexibly configuring these accessories based on the needs of specific application scenarios, you can make your power system more intelligent and reliable.

5. Pay attention to the arcing distance

Flashover distance refers to the distance a circuit breaker's arc can travel when interrupting high currents. Selecting a product with an appropriate flashover distance or zero flashover characteristics can effectively reduce fire and other safety hazards. This is particularly important in high-density installations. Follow the manufacturer's instructions to ensure that installation complies with safety regulations.

In summary, when selecting a molded case circuit breaker, considering these five key factors, combined with your specific operating environment and needs, will help you make a more informed decision. Through precise selection and appropriate configuration, you can provide a more robust safety barrier for your power system, ensuring circuit security. Let us work together towards a smarter, safer future!
