Name: 2 Input / 1 Output, 1000V DC (Configuration 1)
Brand: soutya桑田新能源（浙江）股份有限公司
SKU: 00157
Availability: InStock
Rating: 5 (1 reviews)

Home > DC Combiner Box

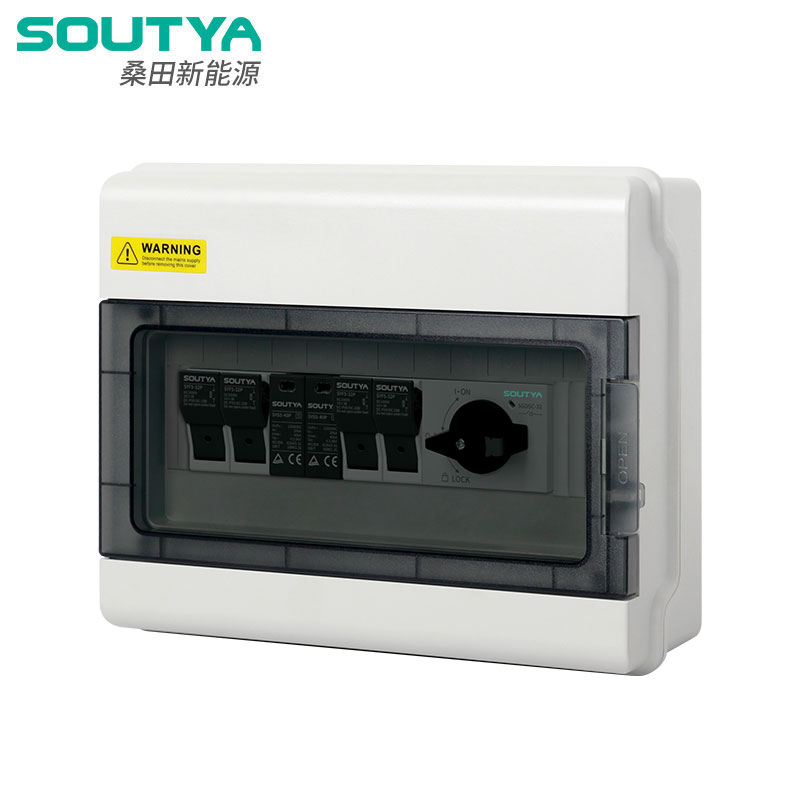

2 Input / 1 Output, 1000V DC (Configuration 1)

Description

Product Application：

Designed for photovoltaic systems, equipped with surge protective devices (SPDs) and isolation switches, providing isolation, leakage current and grounding protection.

Technical Paramete：

Configuration

DC SPD*1 Pc	*DC Fuse4 Pcs**	*DC Isolating Switch1 Pc**
SYS5-40P/2P ▶ Maximum Working Voltage: 1500VDC ▶ Compliance Standard: IEC/EN 61643-31 ▶ Maximum Discharge Current: 40kA	SYF5-32P ▶ With illuminated indicator for clear fuse status identification ▶ Rated operational voltage: 1000VDC ▶ Fuse link specification: 10x38mm，16A	SYDSC-32 ▶ Rated insulation voltage: 1500VDC ▶ Rated current: 32A

Specifications	2 Input / 1 Output, 1000V DC (Configuration 1)	Wiring Diagram
Input	1-circuit
Output	1-circuit
Maximum Voltage	1000V
Maximum DC Short-Circuit Current (Input)	16A （Replaceable）
Maximum Output Current	32A
Distribution Box Parameters
Material	PC+ABS
Ingress Protection (IP) Rating	IP66
Impact Protection Rating (IK)	IK09
Dimensions (L×W×H)	GNB F01-9; L219W200H102mm
Cable Input Port	PG09 Cable Gland, 2.5 - 16mm²
Cable Output Port	PG21, 2.5 - 16mm²
Environment
Operating Temperature	-20°C - +60°C
Humidity	99%
Altitude	2000m
Mounting Method	Wall-mounted
