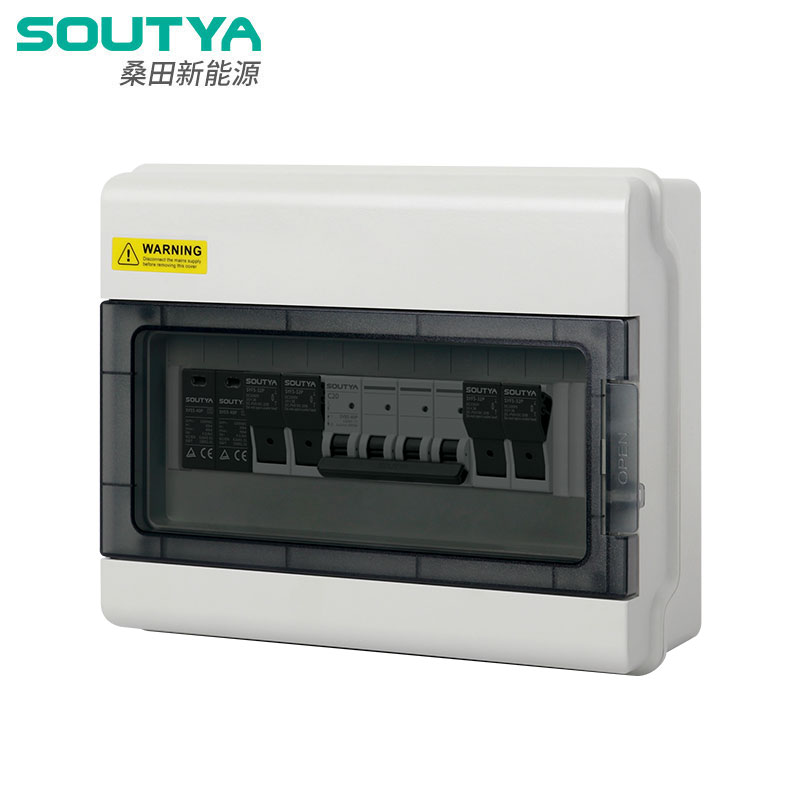

| Configuration |
||
 |
 |
 |
| DC SPD*1 Pc | DC Fuse*4 Pcs |
DC MCB*1 Pc |

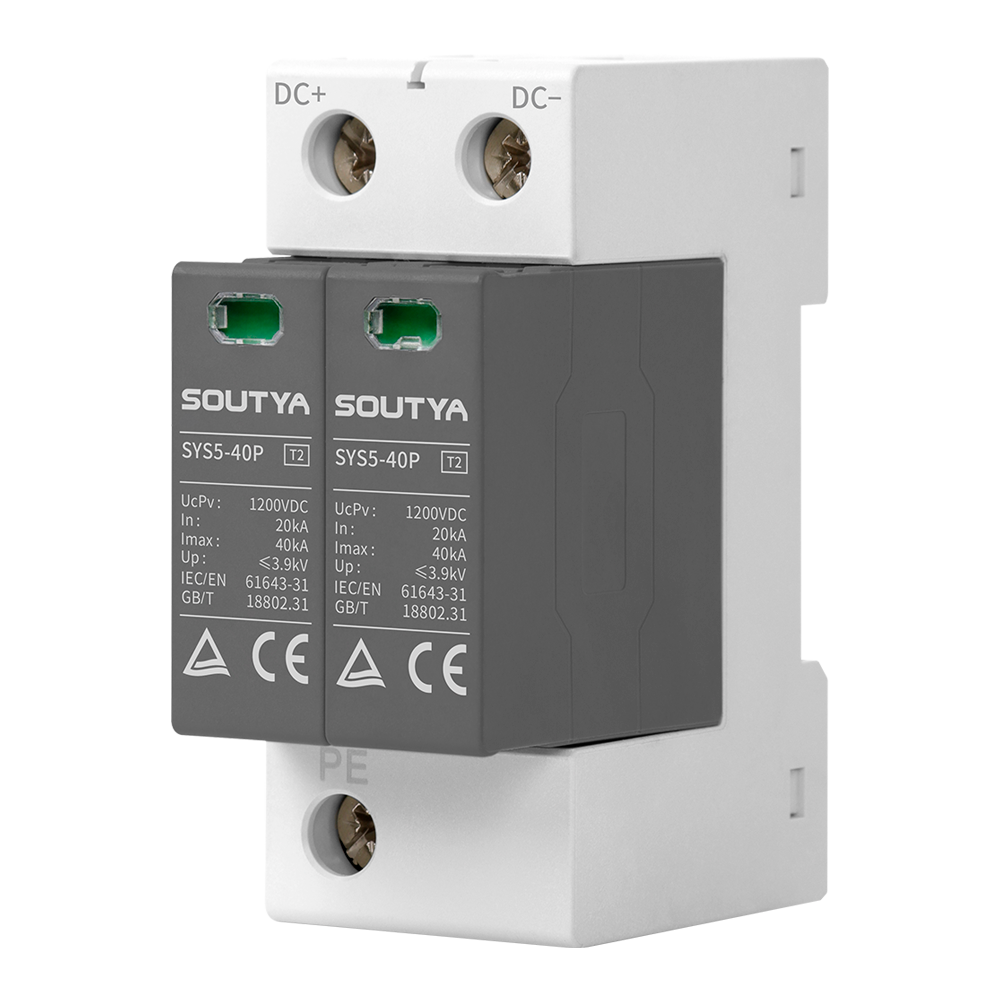

SYS5-40P/2P ▶ Maximum Working Voltage: 1500VDC
▶ Compliance Standard: IEC/EN 61643-31
▶ Maximum Discharge Current: 40kA
|

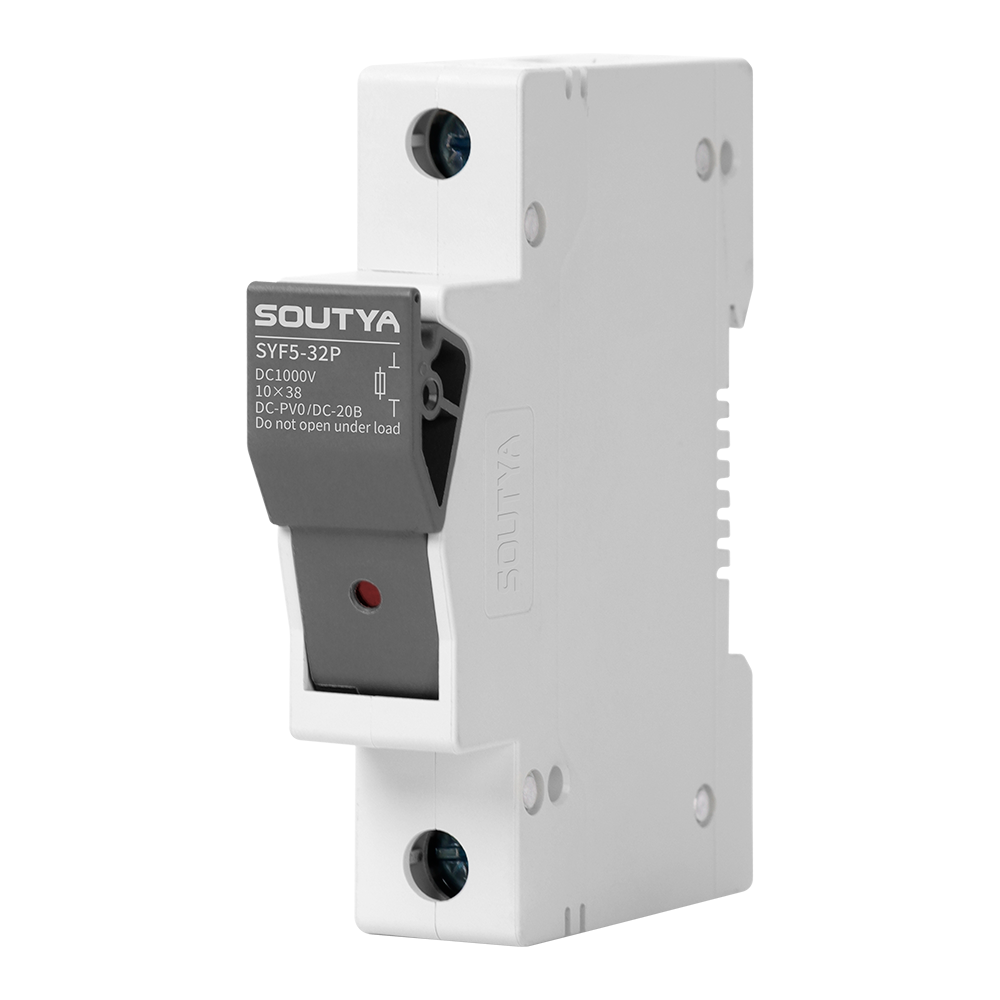

SYF5-32P ▶ With illuminated indicator for clear fuse status identification
▶ Rated operational voltage: 1000VDC
▶ Fuse link specification: 10x38mm，20A
|

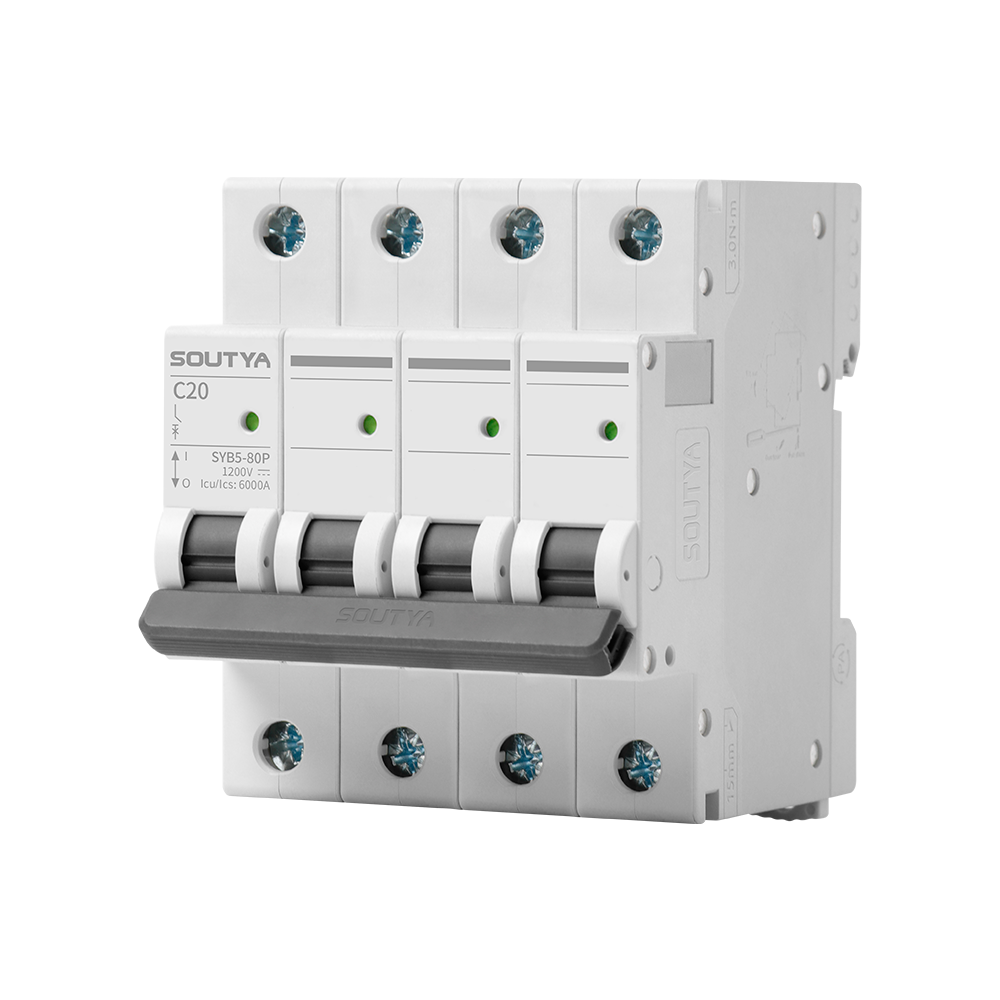

SYB5-80P/4P
▶ Overload and short-circuit protection
▶ Non-polarized, bidirectional protection for simplified wiring
▶ Compliance standard: IEC/EN 60947-2
|
| Specifications | 2 Input / 1 Output, 1000V DC (Configuration 2) |

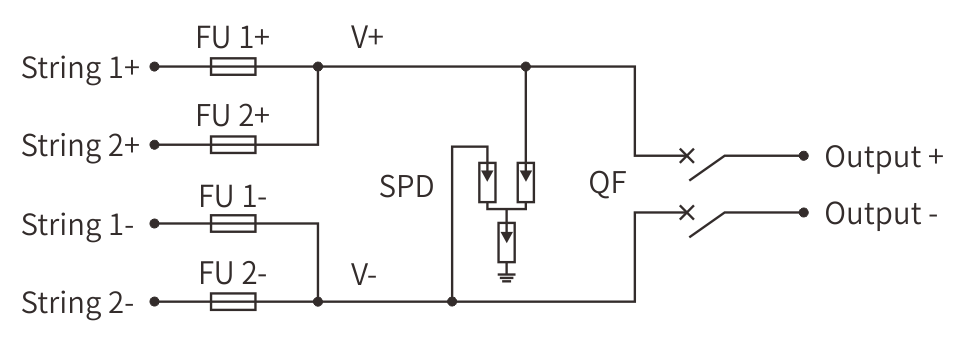

Wiring Diagram |
| Input | 2-circuit |
 |
| Output | 1-circuit |
|
| Maximum Voltage | 1000V | |
| Maximum DC Short-Circuit Current (Input) | 16A | |
| Maximum Output Current | 40A | |
| Distribution Box Parameters |
||
| Material | PC+ABS |
|
| Ingress Protection (IP) Rating | IP66 |
|
| Impact Protection Rating (IK) | IK09 |
|
| Dimensions (L×W×H) | GNB F01-12; L270*W220*H102mm |
|
| Cable Input Port | PG09, 2.5 - 16mm2 |
|
| Cable Output Port | PG21, 2.5 - 16mm2 |
|
| Environment |
||
| Operating Temperature | -20°C - +60°C |
|
| Humidity | 99% |
|
| Altitude | 2000m |
|
| Mounting Method | Wall-mounted | |
