Name: 2 Input / 2 Output, 500V DC/1000V DC (Configuration 2)
Brand: soutya桑田新能源（浙江）股份有限公司
SKU: 00162
Availability: InStock
Rating: 5 (1 reviews)

Home > DC Combiner Box

2 Input / 2 Output, 500V DC/1000V DC (Configuration 2)

Description

Product Application：

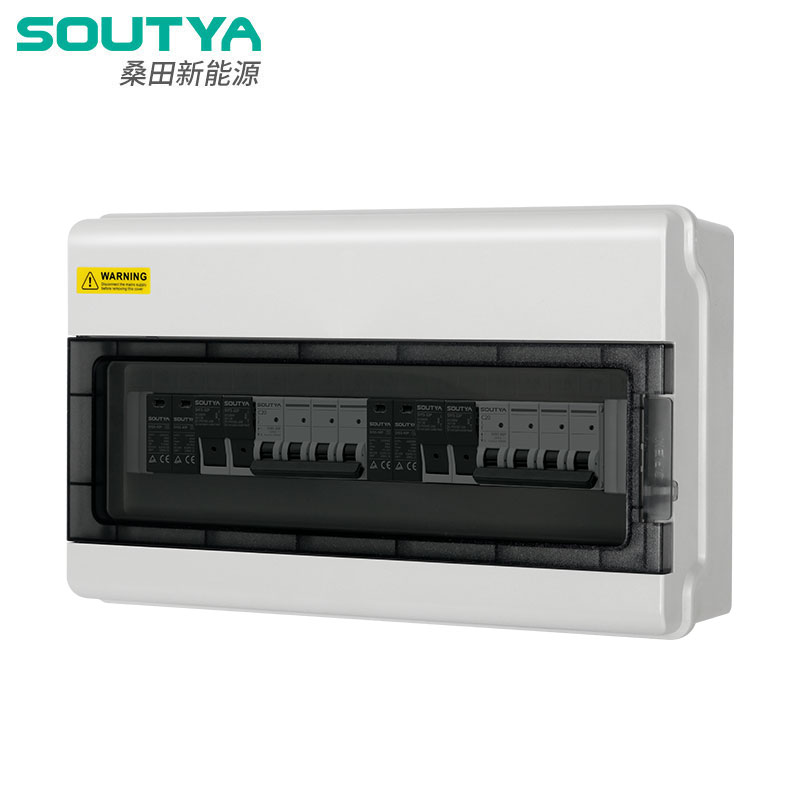

IP66 DC combiner box designed for single-string PV systems, providing surge protection and overload protection for the solar DC side.

Technical Paramete：

Configuration

DC SPD*2 Pcs	*DC Fuse4 Pcs**		*DC MCB2 Pcs**
SYS5-40P/2P ▶ Maximum Working Voltage: 1500VDC ▶ Compliance Standard: IEC/EN 61643-31 ▶ Maximum Discharge Current: 40kA	SYF5-32P ▶ With illuminated indicator for clear fuse status identification ▶ Rated operational voltage: 1000VDC ▶ Fuse link specification: 10x38mm，20A		SYB5-80P/4P ▶ Overload and short-circuit protection ▶ Non-polarized, bidirectional protection for simplified wiring ▶ Compliance standard: IEC/EN 60947-2

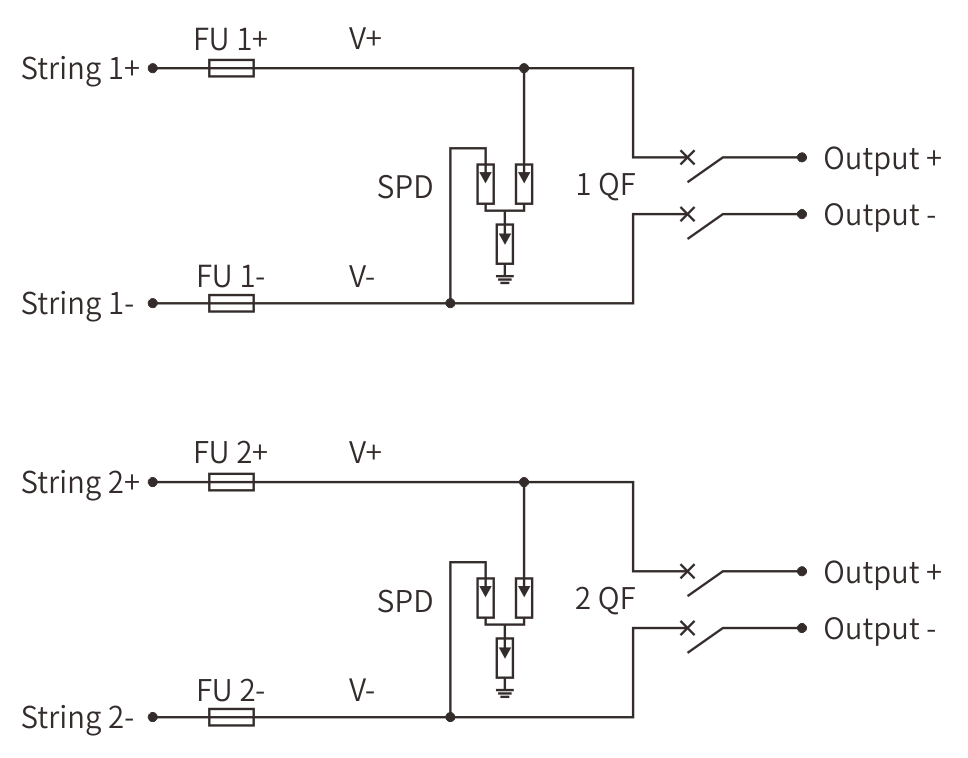

Specifications	2 Input / 2 Output, 500V DC/1000V DC (Configuration 2)		Wiring Diagram
Input	2-circuit
Output	2-circuit
Maximum Voltage	500V	1000V
Maximum DC Short-Circuit Current (Input)	25A	25A
Maximum Output Current	63A	40A
Distribution Box Parameters
Material	PC+ABS
Ingress Protection (IP) Rating	IP66
Impact Protection Rating (IK)	IK09
Dimensions (L×W×H)	GNB F01-18; L380W230H112mm
Cable Input Port	PG09, 2.5 - 16mm²
Cable Output Port	PG21, 2.5 - 16mm²
Environment
Operating Temperature	-20°C - +60°C
Humidity	99%
Altitude	2000m
Mounting Method	Wall-mounted
