| Configuration |
||
 |
 |
 |
| DC SPD*2 Pcs | DC Fuse*4 Pcs | DC Isolating Switch*2 Pcs |
|
SYS5-40P/2P ▶ Maximum Working Voltage: 1500VDC
▶ Compliance Standard: IEC/EN 61643-31
▶ Maximum Discharge Current: 40kA
|
SYF5-32P ▶ With illuminated indicator for clear fuse status identification
▶ Rated operational voltage: 1000VDC
▶ Fuse link specification: 10x38mm，16A
|
SYDSC-32 ▶ Rated insulation voltage: 1500VDC
▶ Rated current: 32A
|

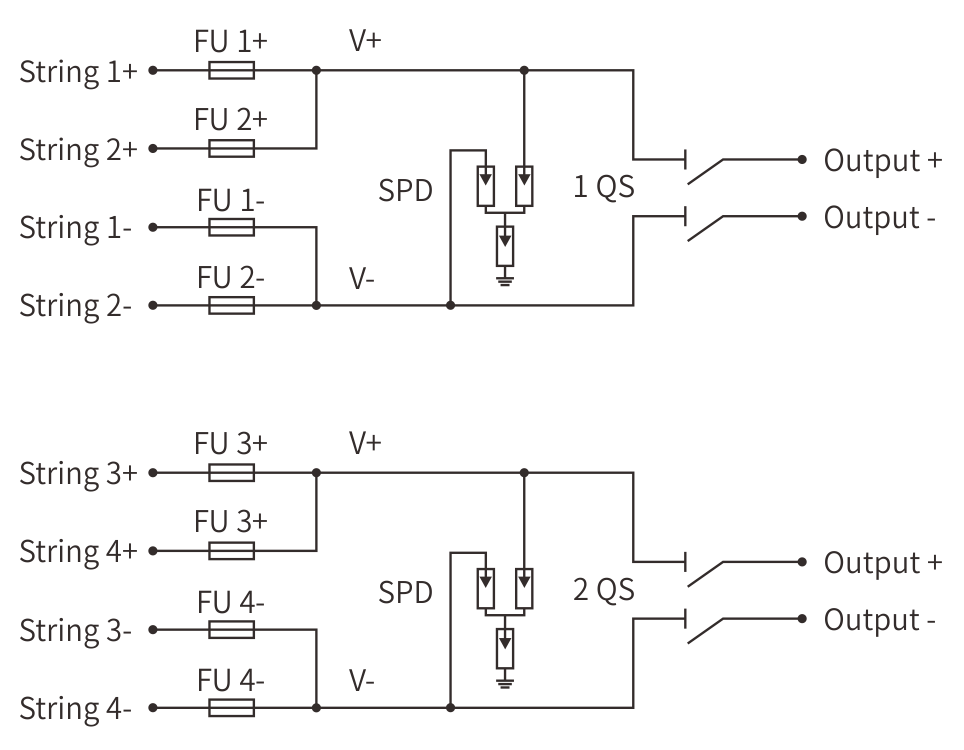

| Specifications | 4 Input / 2 Output, 1000V DC (Configuration 1) | Wiring Diagram |
| Input | 4-circuit |  |
| Output | 2-circuit | |
| Maximum Voltage | 1000V | |
| Maximum DC Short-Circuit Current (Input) | 16A （Replaceable） | |
| Maximum Output Current | 32A | |
| Distribution Box Parameters | ||
| Material | PC+ABS | |
| Ingress Protection (IP) Rating | IP66 | |
| Impact Protection Rating (IK) | IK09 | |

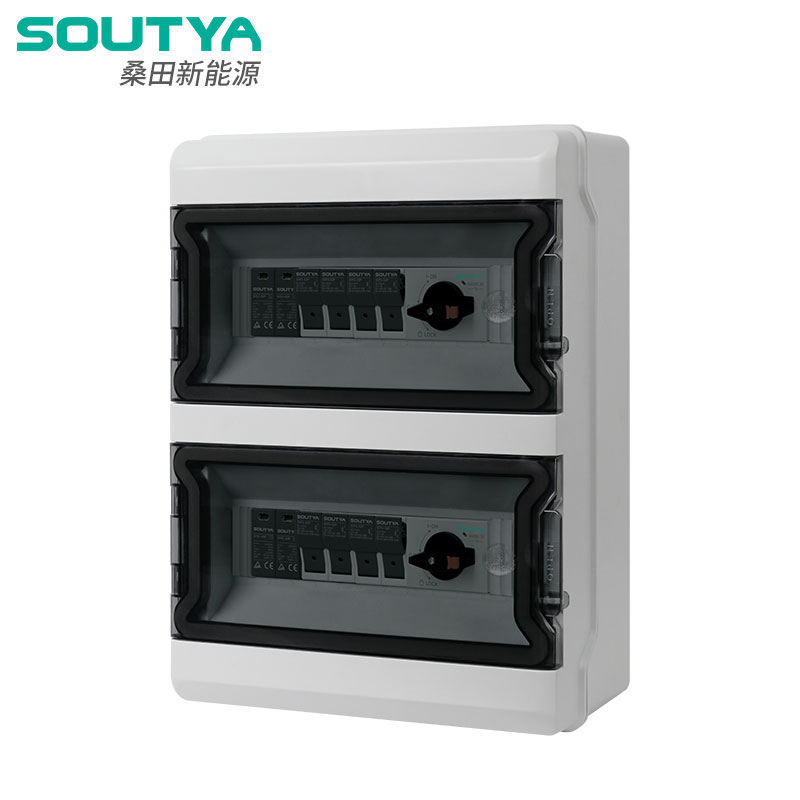

| Dimensions (L×W×H) | GNB F01-26; L296*W390*H130mm | |
| Cable Input Port | PG09 Cable Gland, 2.5 - 16mm2 | |
| Cable Output Port | PG21, 2.5 - 16mm2 | |
| Environment | ||
| Operating Temperature | -20°C - +60°C | |
| Humidity | 99% | |
| Altitude | 2000m | |
| Mounting Method | Wall-mounted | |
